350g 80mm diameter large rotary tablet press for swimming pool calcium hypochlorite tablet

350g 80mm diameter large rotary tablet press for swimming pool calcium hypochlorite tablet

350g 80mm diameter large rotary tablet press for swimming pool  calcium hypochlorite tablet
350g 80mm diameter large rotary tablet press for swimming pool  calcium hypochlorite tablet
350g 80mm diameter large rotary tablet press for swimming pool  calcium hypochlorite tablet
Product Details:
Place of Origin: China
Brand Name: chenguang
Certification: CE SGS
Model Number: ZP100-9C
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Delivery Time: 30WORKING DAYS
Payment Terms: T/T
Contact Now
Detailed Product Description
Application: 300g 350g Big Tablets Mold Material: Titanium Alloy
Motor: 45Kw Speed: Adjustable By VFD
Weight: 7000kg Depth Of Fill: 90mm
Product Diameter: Max 80mm Pressure: Max 1000kn
Customer: Already In Europe, USA. Certificate: CE,SGS

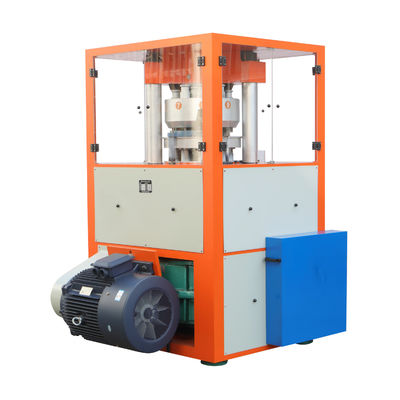

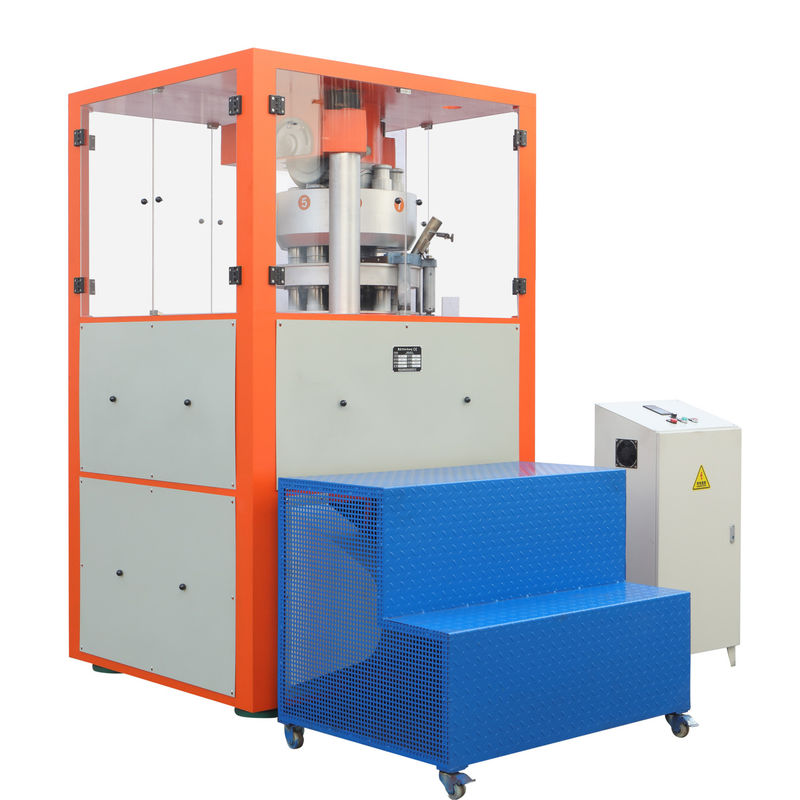

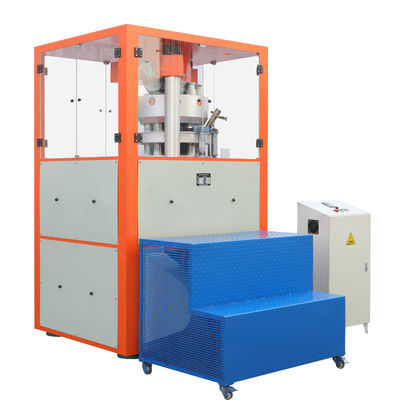

ZP100-9C super large rotary press machine(max pressure 1000Kn)

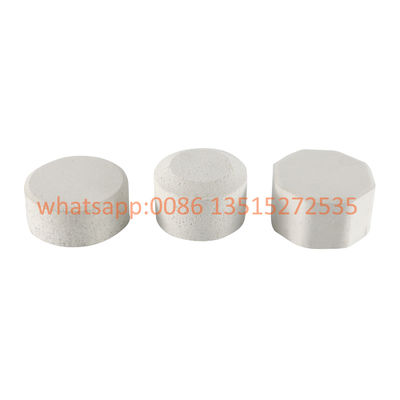

used to press 300g -350g big tablets, such as 300g/350g Calcium hypochlorite tablet.


350g 80mm diameter large rotary tablet press for swimming pool  calcium hypochlorite tablet 0 350g 80mm diameter large rotary tablet press for swimming pool  calcium hypochlorite tablet 1 350g 80mm diameter large rotary tablet press for swimming pool  calcium hypochlorite tablet 2


Introduction:
ZP100-9C can press any granular material into large tablets of round or non-round shape. It was specially developed for large tablet production in 300g -350g.
ZP100-9C super large rotary tablet press machine , own a bigger depth of fill 90cm, and own a bigger main pressure 1000kn+Pre-pressfure 200kn. It is an idea machine for water treatment facory on high capacity 300-350g tablet production .



    350g 80mm diameter large rotary tablet press for swimming pool  calcium hypochlorite tablet 3 350g 80mm diameter large rotary tablet press for swimming pool  calcium hypochlorite tablet 4350g 80mm diameter large rotary tablet press for swimming pool  calcium hypochlorite tablet 5


Characters:
* 9 pcs of Tablets output in each circle, max 5400pcs/h.
* has pre-press wheel 200Kn, and 1000Kn main pressure, which guarantee the quality of finished tablets.
* Moulds are made of Titanium Alloy material.
*Own a big powerful gear box under machine bottom frame.
* Other parts connecting with material are made of Titanium material.
* Transparent window is made of plexiglass, prevent powder from cross-contamination
* All gearing parts are fixed in machine inner, avoid it of corrosion.
* With a frequency protection device, if pressure is too large, the tablet press machine can be automatically shut down to protect the body from damage.

* Already sold to the top chemical group in USA.



Following is the specification and ZP100-9C machine for your reference.

Model ZP100-9C
Dies 9 sets
Max main pressure 1000 Kn
Max Dia of Tablet 80 mm
Depth of Fill 90mm
max Thickness of Tablet 54 mm
Turret Speed 1--10r/min
Max Production Capacity 1-5400 pcs/h(adjustable)
Motor 45 kw 960 r/min 380 v / 50 hz/3p
Overall Size(with hopper) 2200×1600×2950mm
Net Weight 7000kg
