|Place of Origin:||China|
|Packaging Details:||Metal frame with poly-wood package|
|Payment Terms:||L/C, T/T, D/P, Western Union|
|Max Diameter:||36mm||Style:||Large Rotary Tablet Press|
|Machine Weight:||6000kg||Machine Size:||1550X1050X2350mm|
|Motor:||22 Kw||Max Working Pressure:||40ton|
rotary tablet machine,
rotary press machine,
Corrosive Tablet Production Rotary

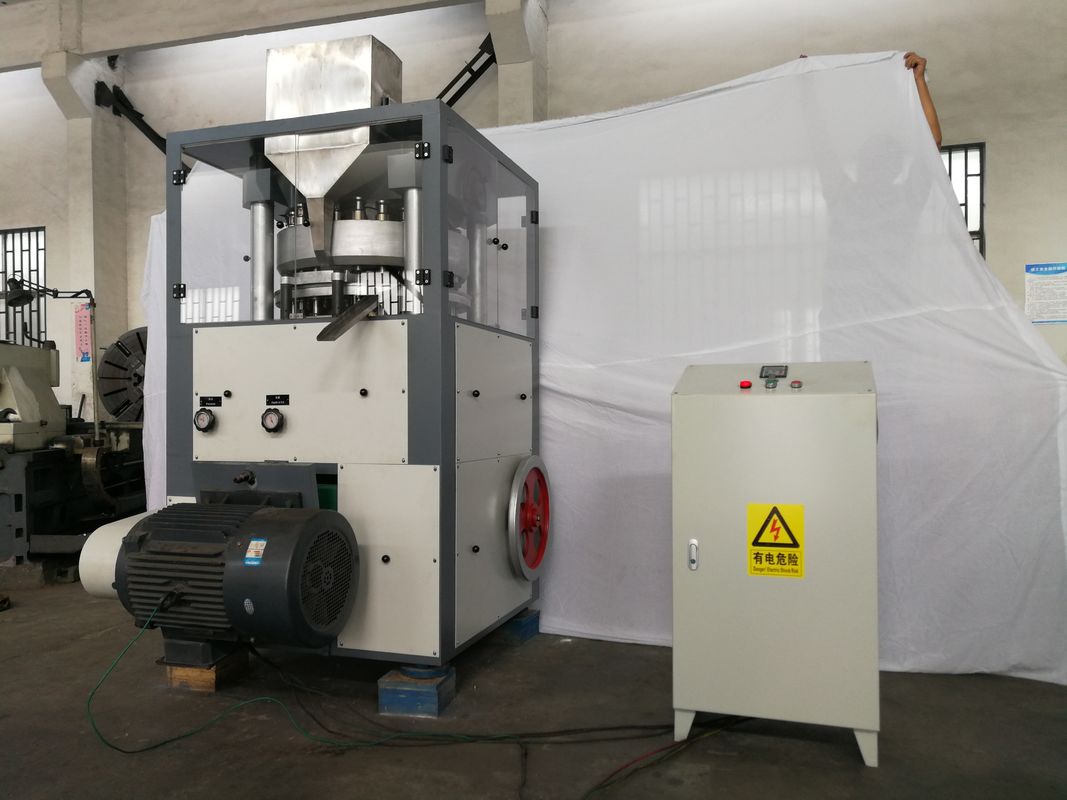

ZP60-23Large double side rotary tablet press machine
It has 600Kn pressure, can press max 60mm diameter,people usually use it for φ20-35mm
TCCA/CHLORINE/SALT such corrosive tablet production. Also it can press double color products.
Simple operation, no any PLC and complex system. You will be surprised that it is very easy to know how to operate.
1. ZP60-23 has higher pressure(600Kn), with 23pcs of mould, max diameter of tablet it can press 60mm, max thickness is 20mm. This thickness max 20mm is bigger, no rotary machines in china mainland can reach this thickness. This is our machine technology which fills the gaps in china rotary machines.
2. Machine turntable is made of one whole piece iron cast, not consisted of several separate metals. We highlight this point, because some suppliers have used several separate metals to make turntable, in order to reduce cost, which bad for machine life and safety, it will be cracked in fast rotation, dangerous. Also our turntables are wear resistant.
3. It only can press single color tablet(such as salt tablet), but also can press double color tablet (washing detergent tablets).
4. Machine is in fully closed traditional structure. Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.
5. Machine design is reasonable. Operation, dismantling and maintenance are convenient. No complex PLC/SENSOR.
6. Machine speed is adjustable, production capacity in big-size tablet is larger, suitable for scale production.
7.The machine can stop automatic when over pressure.
All the drive devices are located inside the machine so keep the machine clean.
|Dies||23 sets||17 sets|
|Max diameter of tablet||36mm||60mm|
|Max depth of fill||40mm||40mm|
|Max thickness of tablet||20mm||2mm|
|Max Production capacity||Single color tablet: 27600 pcs/h
Two color tablet: 13800 pcs/h
|Single color tablet: 20400 pcs/h
Two color tablet: 10200 pcs/h
|Machine weight||About 4000kg|
