Stainless Steel Vertical Screw Feeder Using Pneumatic Vacuum Pump

Stainless Steel Vertical Screw Feeder Using Pneumatic Vacuum Pump

  • Stainless Steel  Vertical Screw Feeder Using Pneumatic Vacuum Pump
Stainless Steel  Vertical Screw Feeder Using Pneumatic Vacuum Pump
Product Details:
Place of Origin: China
Certification: ce
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: Metal frame with poly-wood package
Delivery Time: 30DAYS
Payment Terms: L/C, T/T, D/P, Western Union
Contact Now
Detailed Product Description
Feature: S: High-accuracy, Long Service Life, High Productivity Product: Vacuum Feeding Machine
Material: Stainless Steel 304/ Customized Usage: Conveying Products
Function: Manufacturing Plant, Food & Beverage Factory, Farms, Construction Works , Energy & Mining, Chemical Industry Condition: New
High Light:

vacuum feeding machine

,

hopper feeder conveyor

2-vacuum feeding machine



Description:

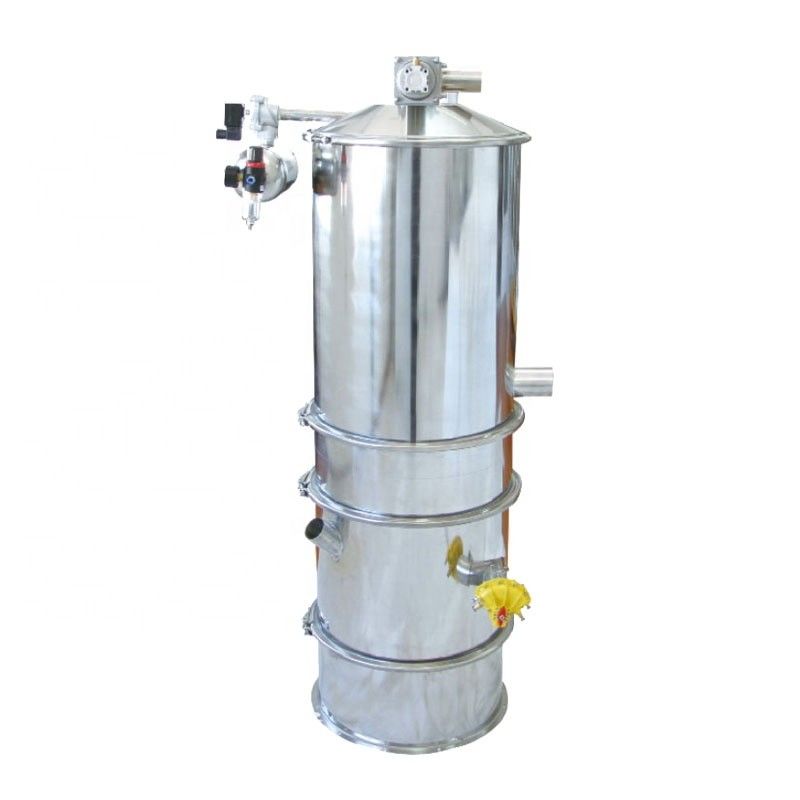

QVC Series Vacuum feeder conveyor is a vacuum feeding machine by using pneumatic vacuum pump as vacuum source. With this vacuum feeder materials could be fed directly from container into mixer, reactor, hopper, sheet press, packing machine, vibrating griddle, pellet trimming machine, hydro-state pelleter, dry-state pelleter and disintegrator. To use this feeder could lighten workers’ labor intensity, put an end to powder pollution and ensure that the production process meets GMP requirements.



For the vacuum feeder with material level control automatic feeding is realized with the hopper of the material-receiving machine through material level control. When the material level is higher than a position in the hopper of the material-receiving machine, vacuum feeder stops feeding, but when he material level is lower than a position in the hopper, vacuum feeder starts feeding automatically. And feeding on the material-receiving machine is thus completed.



Parameters:



model QVC-1 QVC-2 QVC-3 QVC-4 QVC-5
Transmission capacity 5-300kg/hour 100-700kg/hour 300-1500kg/hour 600-3000kg/hour 900-6000kg/hour
bunker capacity 1.1L 6L 12L 42L 60L
working pressure 0.4~0.6Mpa 0.4~0.6Mpa 0.4~0.6Mpa 0.4~0.6Mpa 0.4~0.6Mpa
air consumption 180NL/min. 360NL/min. 720NL/min. 1440NL/min. 2880NL/min.
