| Place of Origin: | China |
| Brand Name: | chenguang |
| Certification: | CE SGS |
| Model Number: | model ZPW23 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | wood pallet |
| Delivery Time: | 30 Working days |
| Supply Ability: | 50sets per year |
| Model: | ZPW23 Rotary Press Machine | Usage: | 2 Or 3 Color Dishwashing Tablet Production |
|---|---|---|---|
| Certificate: | CE SGS | VERSION: | GMP |
| Weight: | 3700kg | Motor: | 7.5kw |
| Machine Cover: | 304 Stainless Steel | Speed: | Control By VFD Device |
| High Light: | Washing Detergent Rotary Tablet Press,ZPW23 Rotary Tablet Press,Two Color Rotary Tablet Press Machine |
||

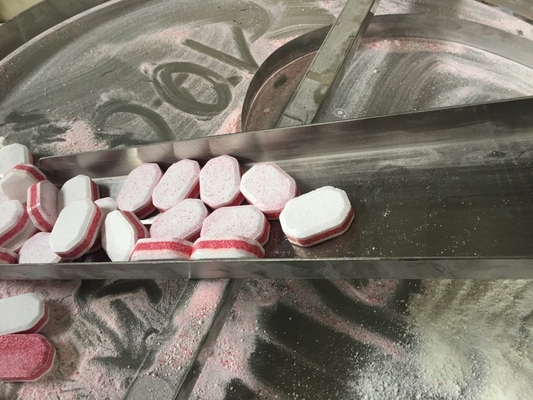

ZPW23 Two color three color Washing detergent rotary tablet press
Main application
Based on ZP27 Rotary tablet press machine, our factory improved it into ZPW23. This machine is mainly for pressing the tablet of double layers or three layers. It mainly used in pharmaceutical industry, chemical industry, electronic products and food.
Features
Technical parameter of ZPW/23 Three Layer Press Machine
| Dies (sets) | 23 |
| Max. Pressure (KN) | 100 |
| Max. dia. of tablet (mm) | 40 |
| Max. Thickness of largest tablet (mm) | 14 |
| Max. Depth of fill (mm) | 25 |
| Max. production capacity(pcs/h) | 31500/34500 |
| Rotational diameter(mm) | 445 |
| Rotational speed of revolving table(r/min) | 10-25 |
| Diameter of middle mould (mm) | 52 |
| Highness of middle mould(mm) | 34+4 |
| Diameter of up and low punch pole (mm) | 42 |
| Length of the upper punch pole (mm) | 180 |
| Length of the lower punch pole(mm) | 180 |
| Overall dimensions(mm) | 1000*1250*1900 |
| Net Weight (kg) | 3200 |
| Motor model | YU132M4A |
| Motor(KW) | 7.5 |
| Voltage(V) | 380 |
Contact Person: Tcca
Tel: +8613515272535
