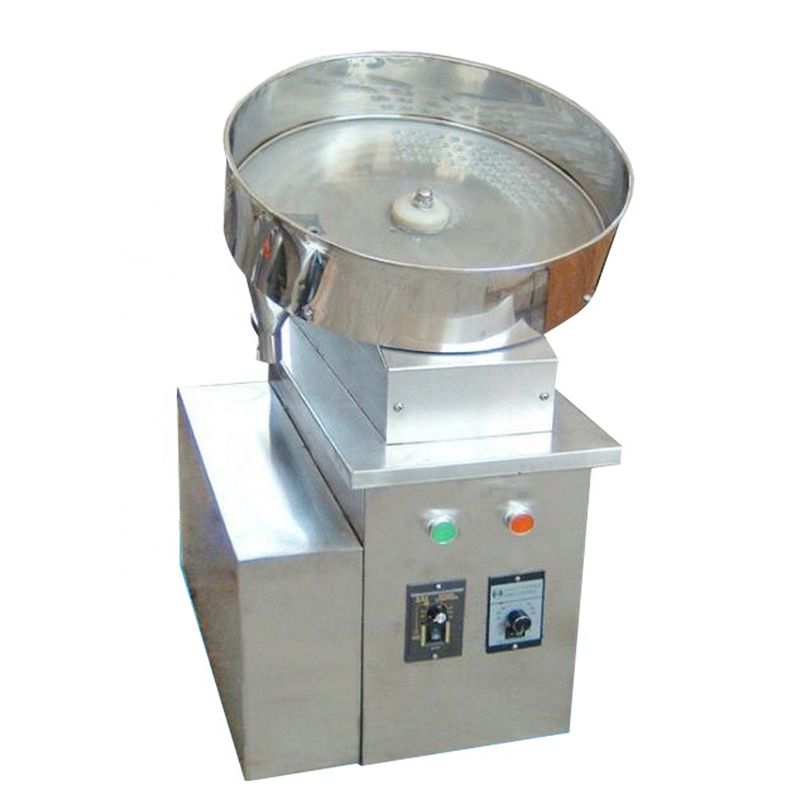

High Efficiency Tablet Counting Machine For Chemistry And Food Industry

High Efficiency Tablet Counting Machine For Chemistry And Food Industry

  • High Efficiency Tablet Counting Machine For Chemistry And Food Industry
High Efficiency Tablet Counting Machine For Chemistry And Food Industry
Product Details:
Place of Origin: China
Certification: ce
Payment & Shipping Terms:
Price: Negotiable
Packaging Details: Metal frame with poly-wood package
Delivery Time: 30DAYS
Payment Terms: L/C, T/T, D/P, Western Union
Contact Now
Detailed Product Description
Feature: S: High-accuracy, Long Service Life, High Productivity Product: Tablet Counting Machine
Material: Stainless Steel 304/ Customized Product Type: Capsule Counting Filling Machine
Applicable: Capsules , Tablet Pill Soft Gel Condition: New
High Light:

pill counter machine

,

tablet capsule counting machine

Tablet Counting Machine



Applications:



This series tablet/capsule filling machine is an automatic conversion shaking piece counting machine which is used in automatic counting, bottling of all kinds of tablets, pills, soft and hard capsule in pharmaceutics, chemistry and food industry. It is an updated shaking piece counting machine developed by our company. With reference to the same kind of machines in and out the country, the machine is designed finely and can be used together with paper feeding cap swing machine, aluminum foil sealing machine and sticky labeler as a whole linked manufacture line and can be used alone.







Characteristics:



1) Conversion and speed-regulating, the shaking frequency can be modulated to adapt to filling of tablets of different specifications.

2) Whole protection device is equipped inside the machine and the host machine will stop when the number of empty bottles is not enough; it avoids waste of raw materials and ensures the accuracy of counting in the manufacture process

3) Photo-electricity detection and air cylinder are applied in anchor bottle device; when exchange packing bottle, only the uniform cam lighted by photo-electricity probe is necessary to adjust and it is easy to use

4) Applying domestic advanced eccentric axis structure of internal hole, good shaking result, low noise, easy adjustment, it conquers several phenomena such as vibrating due to the gaps between worm gear and axial of worm gears, high failure rate, rapid wear and difficult to adjust happened in the companies of same industry domestically.

5) Stainless steel is applied in the contact part of the products and it meets requirement of GMP



Model Tablet Spec Bottles/round of counting plate

Diameter of

counting plate

Diameter

Of bottle

Production

capacity

Power of motor Overall size(mm) Weight(kg)

Single

Head

4~20(mm)

50-100tablet 3bottles/circle

100-200 tablet 2bottle/circle

500-1000 tablet 1bottle/circle

520(mm) No limit 6-18(bottle/min) 0.75(KW) 700*800*1400 150
Single head with conveyor belt 4~14(mm)

50-100tablet 3bottle/circle

100-200 tablet 2bottle/circle

500-1000 tablet 1bottle/circle

520(mm) 50-100(mm) 6-18(bottle/min) 0.75(KW) 2170*1060*1620 300
Double head with conveyor belt 4~14(mm)

50-100tablet 3bottle/circle

100-200 tablet 2bottle/circle

500-1000 tablet 1bottle/circle

520(mm) 50-100(mm) 12-36(bottle/min) 0.75(KW) 2600*900*1700 360
